Solaira Alpha High Output Quartz Radiant Infrared Heater for Outdoor or Indoor Area’s
We are an authorized distributor for Solaira (Inforesight Consumer Products
Inc.)
Links to other Solaira Products:
Cosy All Weather Outdoor Electric Quartz Infrared Heater. 120 or 240 Volts for outdoor or indoor area’s. Rain and snow proof. 120 Volt models have 15' cordset with household plug. | |
Cosy XL All Weather Outdoor Electric Quartz Infrared Heater 120 Volts (with 15' of household plug and cordset) or 240 Volts for outdoor or indoor area’s. Ideal for outdoor commercial areas such as Restaurants, Clubs and Pubs. IP65 rated Rain and snow proof. High Output, Professional Grade. 5000 hour emitter life. | |
Cosy XL All Weather with Lights - All Weather 1500 or 2000 Watt 240 Volt Radiant Overhead All Weather Heater, 22" x 4" 4.5", Silver Finish | |
SHP Series Controls. For heater networks requiring greater than 15.5AMP of total draw. High Power Phase-Angle SCR Power Controls Product Range: 110-240 VAC, Single-Phase, 30, 80 , 150 and 350 amps for up to 84,000W Variable Resistance Loads for Infrared Heating Systems. | |
SMaRT Control Series Control, Occupancy Sensor, Timer and Remote Control. Digital Variable Control Adjust up to 6kW heater output to desired level. Water Resistant Enclosure For Outdoor or Indoor Applications Wireless Handheld Remote (Optional) Occupancy Monitoring (Optional) |
Solaira’s most powerful, versatile heating
system, engineered for commercial and industrial applications.

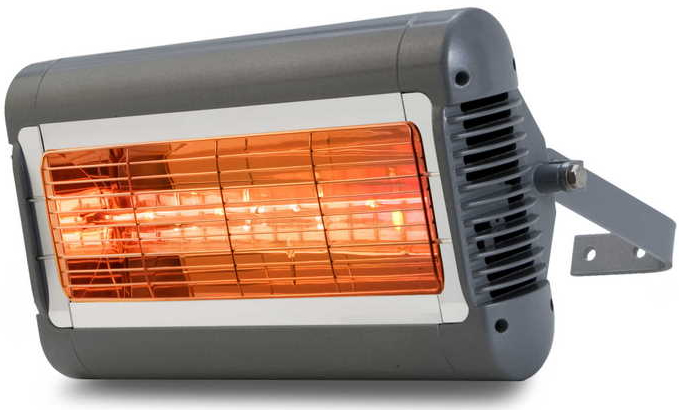

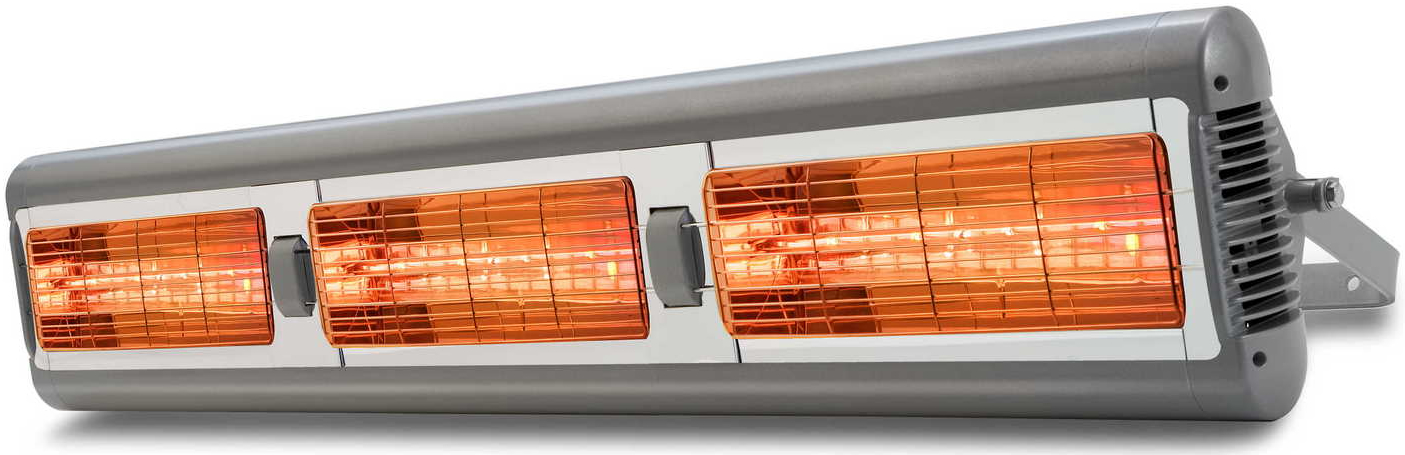

The NEW SOLAIRA ALPHA SERIES electric infrared heaters represent the evolution of engineered short wave
heating technology. Alpha Series Heaters produce short wave length infrared that convert 92% of consumed
energy to instant, controllable, directional heat. This heating technology is not affected by wind or draft as
it warms people, objects and things and not the air. The modular design of the Solaira Alpha Series allows
specifying engineers to adjust and direct specified heating loads based on area requirements. The
Alpha Series modern, sleek design allows architects to integrate heating technology with clean un-intrusive
lines. Alpha Series Heaters are engineered to meet P24 standard for water spray so they can be installed in
both wet (outdoor) or dry conditions (indoor or outdoor). Ideal for use as a radiant patio heater.

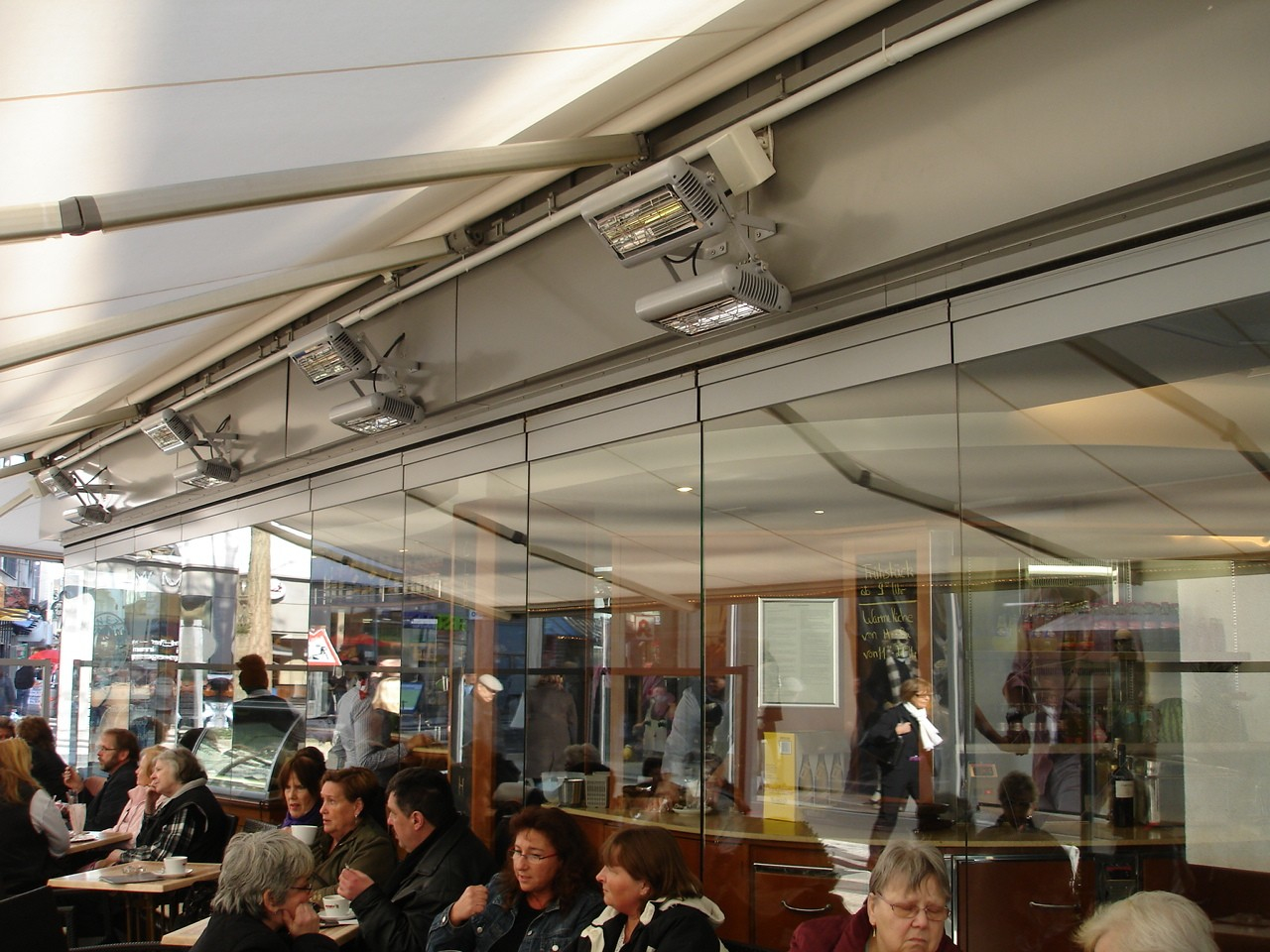

IDEAL FOR WAREHOUSES, SHIPPING AREAS, RESTAURANTS, VALET, RESTAURANT PATIO, CONCIERGE DESK, DRIVING RANGES, SECURITY GATE HOUSES, AREAN SEATING, COMMUNITY CENTERS, PLACE OF WORSHIP, ZOOS AND OUTDOOR ENTERTAINMENT COMPLEXS.
The Innovative Solaira™ All-weather Outdoor Quartz Heater is highly efficient and economical. It is environmentally friendly, odorless, safe and virtually maintenance free. This unique heater only heats people and objects within the heat zone, not the air in between.
Size (W/H/D): 18.5˝/9.0˝/5.5˝ (w/bracket 11˝)
DURABLE AND WEATHERPROOF
Weatherproof casing for outdoor, uncovered use
CONVENIENT AND VERSATILE
Click here for a larger image
WHY CHOOSE SOLAIRA™ QUARTZ HEATING OVER NATURAL GAS OR PROPANE HEATERS?
Solaira heaters are a better solution than the gas/propane option. GO GREEN WITH SOLAIRA
HEATERS
Replacement Elements are available for order below
SWIREAW15120
SWIREAW15240
SWIREAW20240
Click here for a larger image

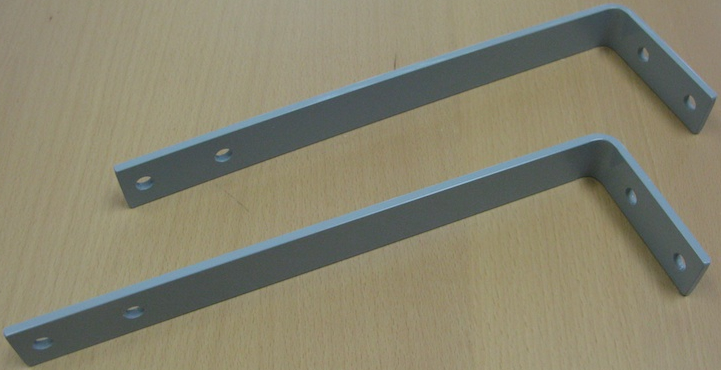

Pair of 12" Silver/grey brackets for use in mounting Alpha heaters.
Click here for a larger image

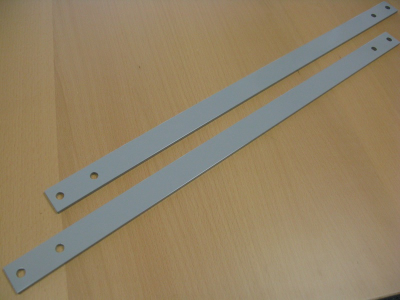

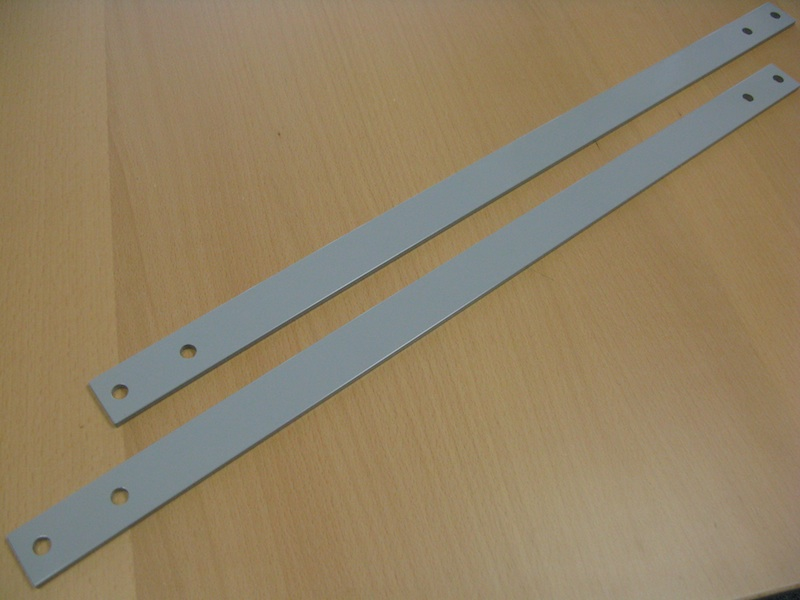

Pair of 24" Silver/grey bracket extensions for use in mounting Alpha heaters.
Click here for a larger image

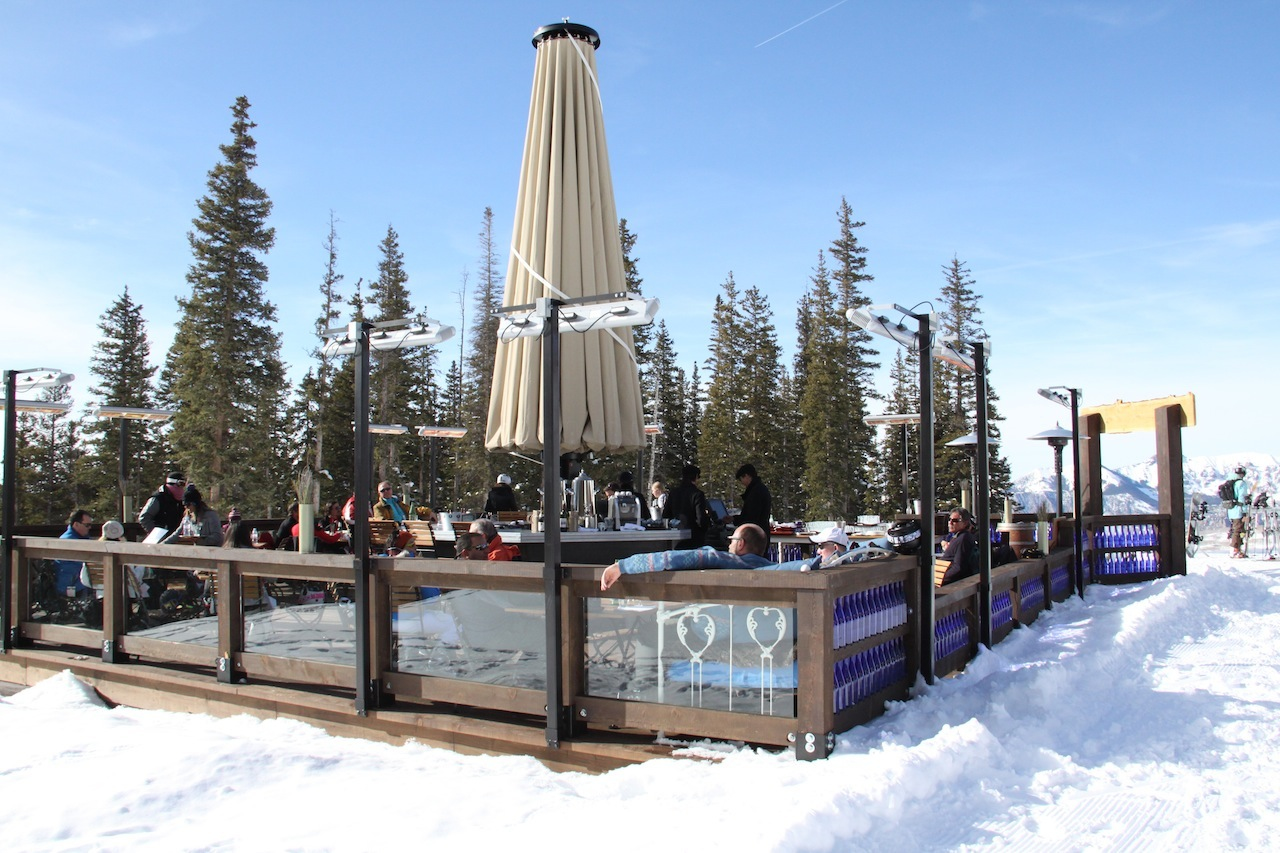

This is a 1600 square foot patio at the top of TELLURIDE COLORADO (13,000+ feet). On a sunny, clear day, the umbrella is closed and the area is heated by 12 (twelve) Alpha H3 6.0kW heaters.
Click here for a larger image
When the weather turns bad, the specialty Umbrella is opened and the area is heated by Eighteen Alpha H1 2.0kW Heaters. The heaters fold into the umbrella when closed….The system has a shut off to assure no power to the Umbrella Heaters when closed.
Optional Controls: | |
Solaira 120/240 Volt Control for Quartz Heaters. Variable Heat Controller is a weatherproof, digital, solid-state power control designed to adjust heat output from 10% to 100%. On/off switch, “SOFT START” brings the power up slowly to increase emitter life. Up/down controls with heater level shown on the LED front panel. Installation in both indoor or outdoor applications including wet environments. Controls Quartz lamps or tubes of 115- 120 VAC up to 1600 Watt, 208- 240 VAC up to 3200 Watt. | |
Fostoria VHC-32 Variable 208/240 Volt Controller. Solid-state power control designed to provide a convenient way to adjust heat output on electric infrared heating elements. Control heaters on patios, in shelter houses or other protected outdoor environments. It can operate up to a maximum of 3200 watts. Not for residential use. | |
Fostoria FTC-30 30-Minute Manual Timer. Includes time switch, wall plate and knob control. 120/208/240 Volts, 28 Max. Amps. |
Literature in .pdf format (You must have the free Adobe Acrobat Reader plug-in.) | |
Engineer/architect spec sheet | |

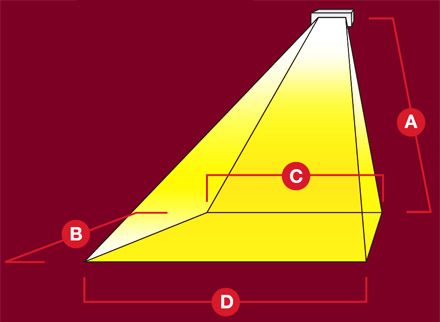

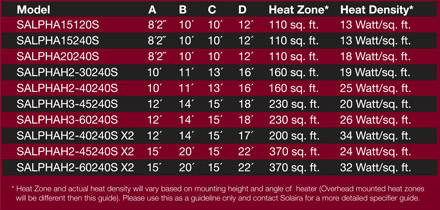

Coverage Area and part number | |
Dimensions | |

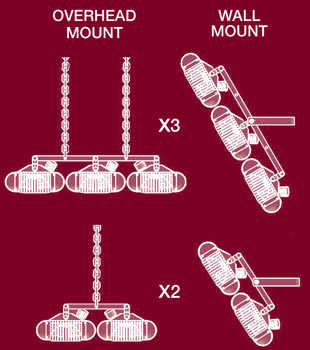

Mounting Options | |
Sell/Cut Sheet |
Secure
Online Ordering |
|||
Item ID | Catalog # |
Description | Click "Select" below to view the price and the actual real-time quantity in stock of the item & accessories. |
120 Volt: | |||
SOLAIRA10065 | SALPHA15120S | 1.5kW 120Volt Silver/Grey | |
SOLAIRA10057 | SWIREAW15120 | Replacement Element - 120 Volt - 1,500 Watt | |
240 Volt: | |||
SOLAIRA10071 | SALPHA15240S | 1.5kW 240Volt Silver/Grey | |
SOLAIRA10069 | SALPHA20240S | 2.0kW 240Volt Silver/Grey | |

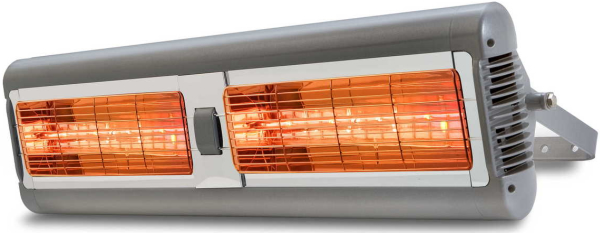

SOLAIRA10066 | SALPHAH2-30240S | 3.0kW 240V Silver/Grey | |
SOLAIRA10070 | SALPHAH2-40240S | 4.0kW 240V Silver/Grey | |
SOLAIRA10073 | SALPHAH3-60240S | 6.0kW 240V Silver/Grey | |
SOLAIRA10058 | SWIREAW15240 | Replacement Element - 240 Volt - 1,500 Watt | |
SOLAIRA10059 | SWIREAW20240 | Replacement Element - 240 Volt - 2,000 Watt | |
Optional Controls and Accessories: | |||
FOST485357 | VHC-32 | Fostoria VHC-32, Variable 208/240 Volt Controller |
|
MARKEL445955 | FTC-30 | Fostoria FTC-30, 120/208/240 Volt, 30-Minute Manual Timer |
|
SOLAIRA10090 | SALPHABRCT12S | Pair of 12 Inch Silver/grey brackets for use in mounting Alpha heaters. 2 Brackets. |
|
SOLAIRA10091 | SALPHABRCTEXT24 | Pair of Bracket Extensions for use in mounting Alpha heaters- 24 Inch Silver/grey - 2 Brackets |
