Salamander Ceramic Radiant Panel (CRP)
En Espaņol
We also manufacture:
ALEX Aluminum
Extrusion Reflectors
with Outer Housing Case
| Technical Information: | |
| Technical Manual Newsletter (The Salamander News) |
Installation Instructions Frequently Asked Questions |
CRP Literature in .pdf format |
(You must have the free Adobe Acrobat Reader
plug-in.)
 |
 |
Our CRP Panels are designed to use our LTE Size Ceramic Infrared Heaters which are 96% infrared energy efficient. |

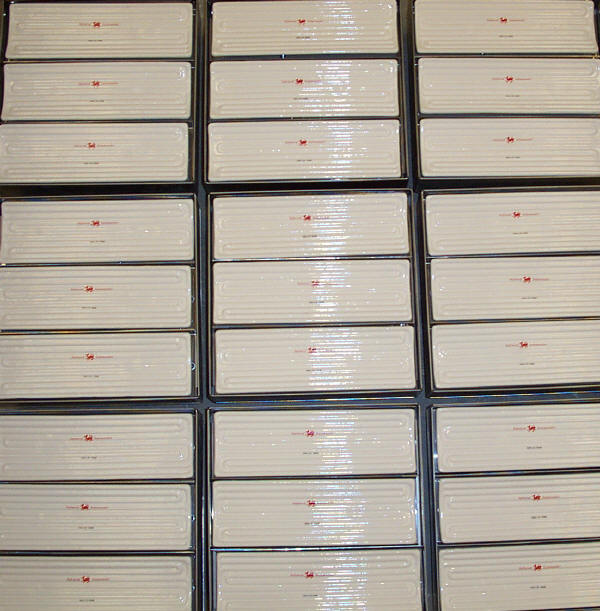

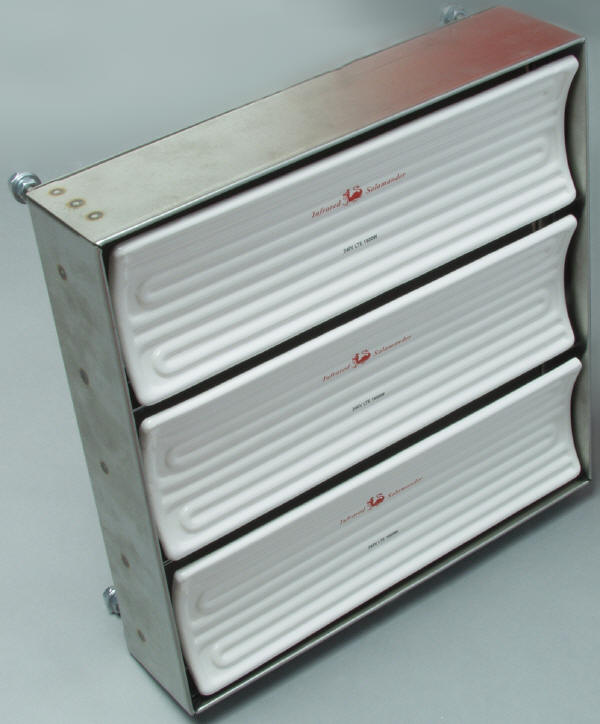

These heavy duty, modular panels are pre-wired and assembled with 3 LTE emitters and insulated with ceramic fiber insulation.
The panel
size is 12" x 12" (305mm x 305mm) for a modular building block design or
as a stand
alone unit and can be mounted on angle iron gridwork.
When building a custom panel using CRP's, leave extra spacing between each CRP
to allow for thermal expansion.
The mounting bolts are positioned at 11" x 11" (279mm x 279mm.)
 |

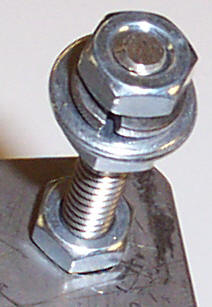

Standard mounting via a 1/4-20x1.5 stud, 2 hex nuts, lock washer and 2 washers |
Dimensions:
Click here
for a larger image
The outside 12" dimension has a
tolerance of +/- 1/8"

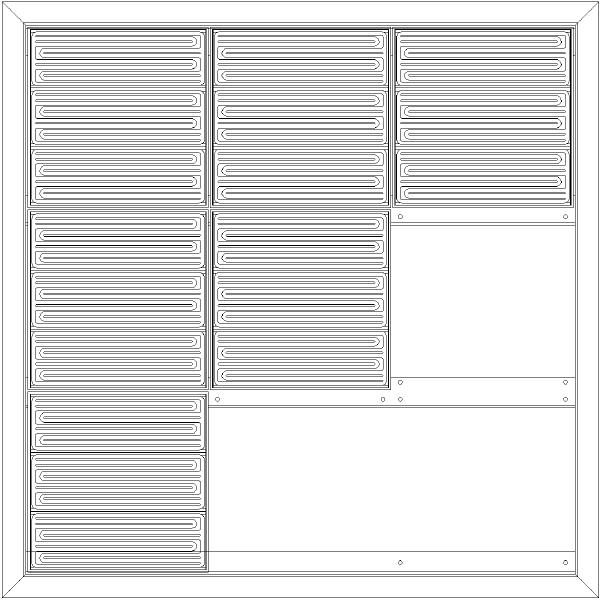

Many CRP panels can be mounted next to each other to make a larger panel.

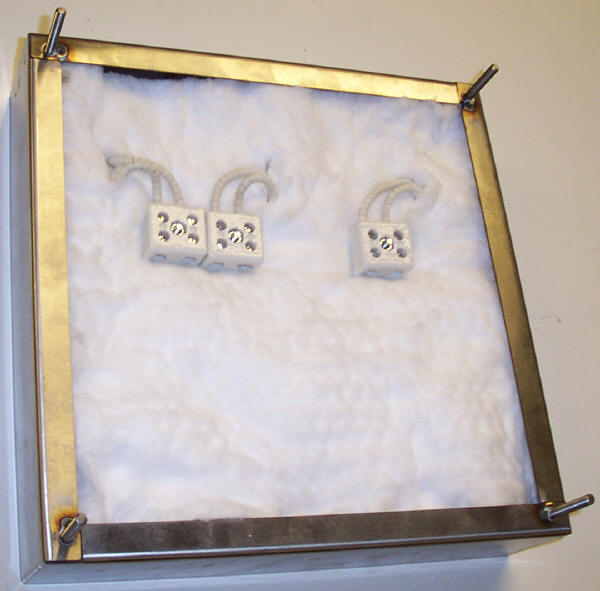

The beaded lead wires pass through 1"
ceramic fiber insulation and are wired
to TB-2 terminal blocks.

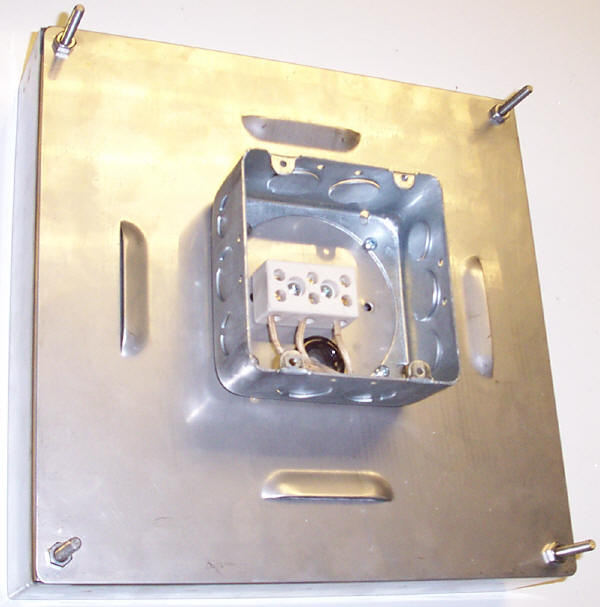

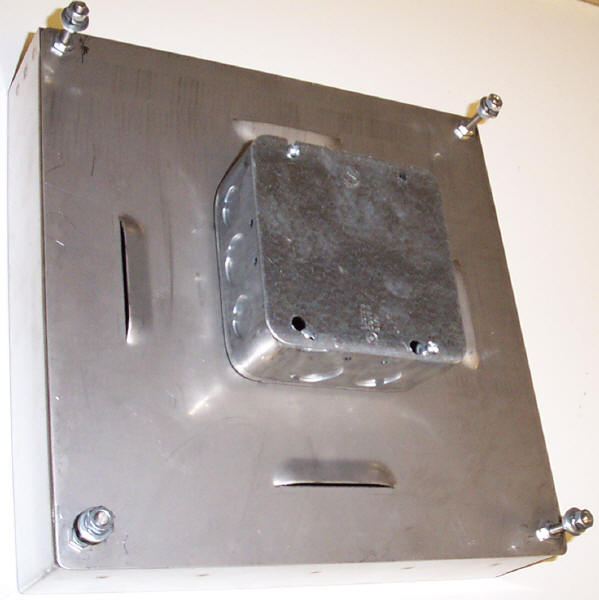

High temperature
MG-12 wire passes through the back panel and connects to a
TB-3 terminal block
(three phase panels) or a TB-2 terminal block (single phase panels)
Click here for a larger image
Water Evaporation
| Optional Controls and Accessories: | |||
 |
Payne Controls Company 18TP-1-15, 120 Volt, Variable Voltage Control. Portable solid state power control, single-phase, 50/60 Hz input, 15 amp fuse, 6 foot plug & cordset. All solid state construction. Lighted on/off rocker power switch. 270° turn potentiometer variable control of output voltage: 0-95% of input. On-board "2 millisecond" fuse self- protection. |
 |
Payne Controls Company 18TP-2-15, 240 Volt, Variable Voltage Control. Portable solid state power control. single-phase, 15 amp fuse, 6 foot plug & cordset. 3600 watts @ 240 volts (maximum rated voltage). All solid state construction. Lighted on/off rocker power switch. 270° turn potentiometer variable control of output voltage: 0-95% of input. On-board "2 millisecond" fuse self- protection. |
|
|
Payne Controls Company 18TBP-1-15,
120 VAC Input, Variable Temperature Controller adjusts heat output from
0-100%. 0-118 VAC Output, 50/60Hz. Payne Controls Company 18TBP-2-15, 240 VAC Input, Variable Temperature Controller adjusts heat output from 0-100%. 0-235 VAC Output, 50/60Hz (Also for 220/230 VAC Input) |
 |
Chromalox CH Infinite Control Mechanism. Up to 15 Amps on 120 or 240 Vac. (1,800 & 3,600 Watts) 0-100% of wattage with infinite control over the first 50% of total wattage. Energized continuously in HI position, at other settings it delivers selected input level under control of a simple bimetal timer. |
 |
Chromalox VCF Percentage Timing Input Controller. Flush mounted controller. Motor Driven Cycling Device, 115 & 230 Vac, 20 & 25 Amp Capacity. Percentage timing can be set to energize a heater for a chosen percentage (4-100%) of a preset 15 or 30 second cycle. |
 |
Chromalox 1601E 1/16 DIN Digital Temperature Control with Configuration Port. Built-in Programming Port for Remote for OEM Fast Configuration. Programming w/o Internal Hardware Switch. SMART Self-Tuning with Fuzzy Logic. Heat, Cool or Heat/Cool Control Capability. Universal Inputs TC, RTD. Soft Start Power Limiting on Power-Up |
 |
Chromalox 1603E Digital 1/16 DIN Temperature Control with Configuration Port. Built-in Programming Port for Remote for OEM Fast Configuration. Programming w/o Internal Hardware Switch. SMART Self-Tuning with Fuzzy Logic. Heat, Cool or Heat/Cool Control Capability. Universal Inputs TC, RTD. Soft Start Power Limiting on Power-Up |
 |
Chromalox 1604 1/16 DIN Temperature Control, Dual 4-Digit Display of Process and Setpoint, Three Outputs, Heater Breakdown Current Monitoring Alarm, Universal Inputs: TC, RTD, Voltage and Current, SMART Self-Tuning with Fuzzy Logic, Soft-Start Power Limiting on Power-Up. |
 |
Chromalox 2110 1/4 DIN Temperature Control. 10 Amp Solid State Relay, 20 Amp Mechanical Relay, J, K Thermocouple, or RTD Selectable Inputs. |
 |
Chromalox 2104 1/4 DIN Digital Temperature and Process Controller. Dual PID & Fuzzy Logic Control, Control Loop Protection, Five Outputs-Control, Alarm or Event. Universal Sensor Inputs: TC, RTD, Voltage and Current. Switching Power Supply 100-240 Vac or 12-24 Vac/Vdc, 50/60 Hz. |
 |
Chromalox 3101 1/4 DIN High/Low Digital Limit Controller. Compact, fully programmable high or low limit controller. One High/Low Limit Control Output. Peak Temperature Display, Universal Sensor Inputs, Switching Power Supply 100-240 Vac or 12-24 Vac/Vdc |
 |
Mercury Contactors/Relays 20, 35, 60, 80, 100 and 150 amp Mercury Relay Contactor Power Controls |
 |
Avatar Instruments SCR Power Controllers. High performance proportional controls for industrial electric heaters: 10 - 600 Amp, 24 - 600 volt, Single or three phase. |
 |
Infrared Sensors Non-contact temperature detection. Pre-Calibrated Infrared Thermocouples, Stainless Steel, Mounting holes with screws, Airpurge/Aircool |
 |
Electrical Power Wire MG and TGGT sizes 4 gauge through 22 gauge, 600 volt, 842°F (450°C), fiberglass overbraid. |
 |
Thermocouple Wire 20 gauge, thermocouple grade stranded wire and extension grade wire |
 |
Ceramic Wire Connectors. 4 different size cone connectors for high temperature applications. Rated 300 volts maximum. For joining solid and/or stranded wire. |
 |
Protective Sleeving (Fiberglass) Secondary insulation of electrical wires in high temperature applications. |
 |
Insulation (Ceramic Fiber) Alumina-silica insulation. 1" or 1/4" thick x 48" wide for use in infrared panels. Exceptional handling strength, while being flexible and lightweight. It is rated to 2300°F (1260°C.) |
 |
Terminal Blocks Make wiring connections to heaters efficient and easy with a touch safe design. 1, 2, 3 or 4 Pole, 5-15 Amps. |
|
Secure Online Ordering |
|||
| Item ID | Catalog # / Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
| CRP Panel (does not include 3 LTE size ceramic heaters - order separately below) customized to your application with your desired wattage (between 100W and 1800W each LTE) and voltage (between 120V and 480V.) Please type in the "Phone # / Notes" field whether to wire as a three phase or single phase panel. | |||
| IRCRP10001 | CRP-12x12 / Complete Reflector Assembly Without 3 LTE Ceramic Heaters (order separately) |
$197.00 |
 |
|
|||
| IRCER11848 | LTE-500-120-0-L6-WH-0 120V 500W | $52.50 |
|
| IRCER11850 | LTE-650-480-0-L6-WH-0 480V 650W | $52.50 |
|
| IRCER11354 | LTE-750-120-0-L6-WH-0 120V 750W | $52.50 |
|
| IRCER11438 | LTE-750-240-0-L6-WH-0 240V 750W | $52.50 |
|
| IRCER11450 | LTE-750-480-0-L6-WH-0 480V 750W | $52.50 |
|
| IRCER11451 | LTE-750-480-0-L6-Y-0 480V 750W | $52.50 |
|
| IRCER11454 | LTE-750-480-FRK-L6-WH-0 480V 750W | $76.50 |
|
| IRCER11353 | LTE-1000-240-0-L6-WH-0 240V 1000W | $52.50 |
|
| IRCER11367 | LTE-1000-480-0-L6-Y-0 480V 1000W | $52.50 |
|
| IRCER11366 | LTE-1000-480-0-L6-WH-0 480V 1000W | $52.50 |
|
| IRCER11379 | LTE-1200-240-0-L6-WH-0 240V 1200W | $52.50 |
|
| IRCER11391 | LTE-1200-480-0-L6-WH-0 480V 1200W | $52.50 |
|
| IRCER11392 | LTE-1200-480-0-L6-Y-0 480V 1200W | $52.50 |
|
| IRCER11399 | LTE-1200-480-TW-L6-WH-0 480V 1200W | $55.00 |
|
| IRCER11403 | LTE-1800-240-0-L6-WH-0 240V 1800W | $52.50 |
|
|
